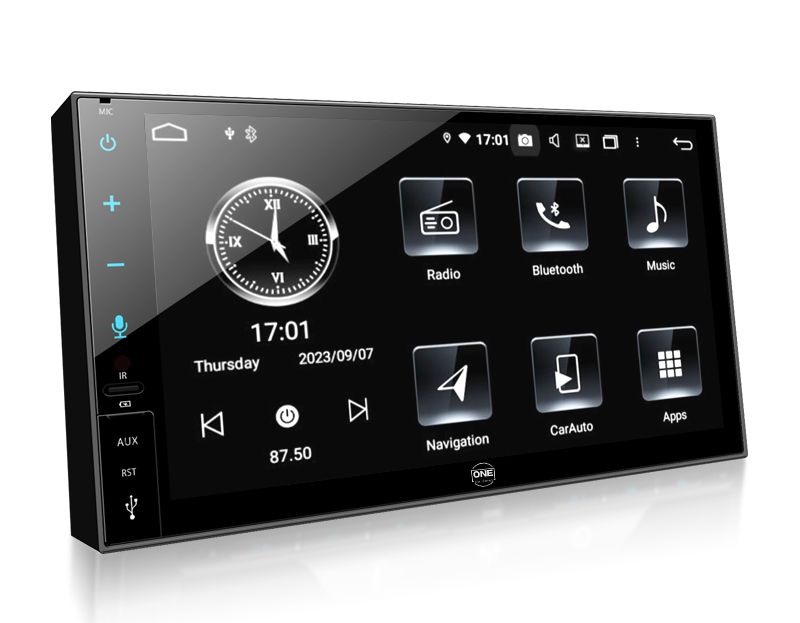

7" Double Din Android 11 with Bluetooth 5.0, Wireless Apple CarPlay/Android Auto/Mirror Link, Type-C Fast Charging, Video Out

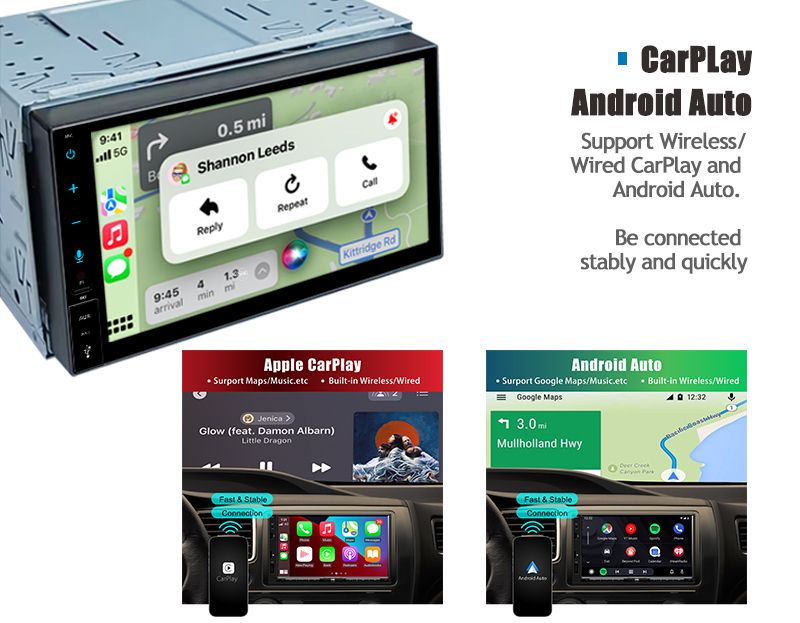

Apple CarPlay and Android Auto compatible(wired&wireless)
Bluetooth 5.0
Panel Size: 178mm*100mm
RAM+ROM: 2+32GB/4+64GB
Internet: 4G+WIFI
Fast Charging: Type-C and USB
Preamp Voltage: 4V
Video Out: 2
USB: 3
Overview
Specifications
Product Video

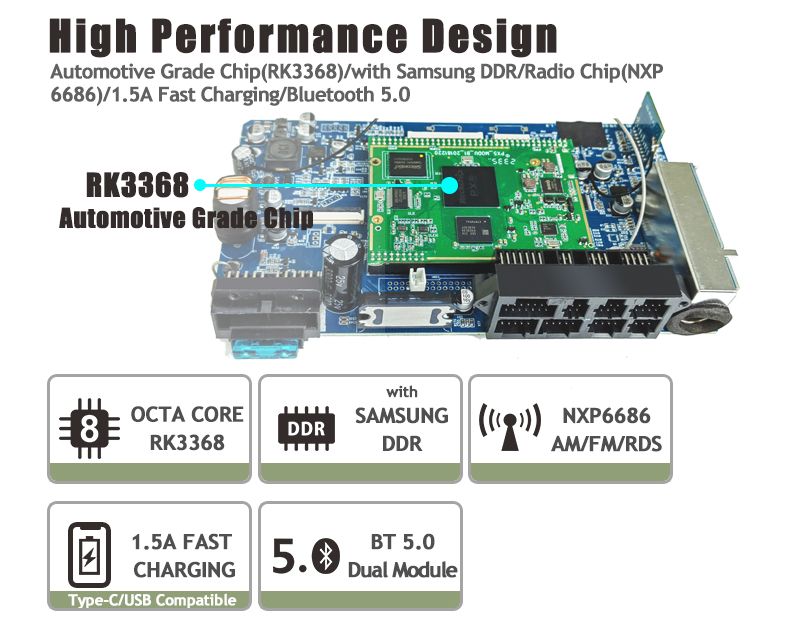

8-Core, Android OS, RK3368

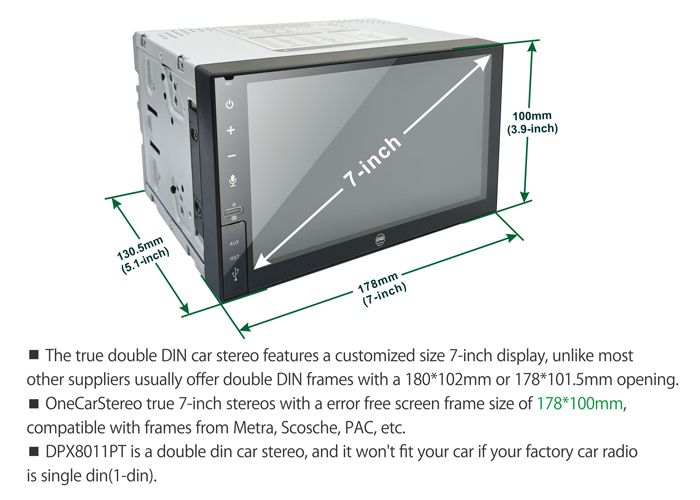

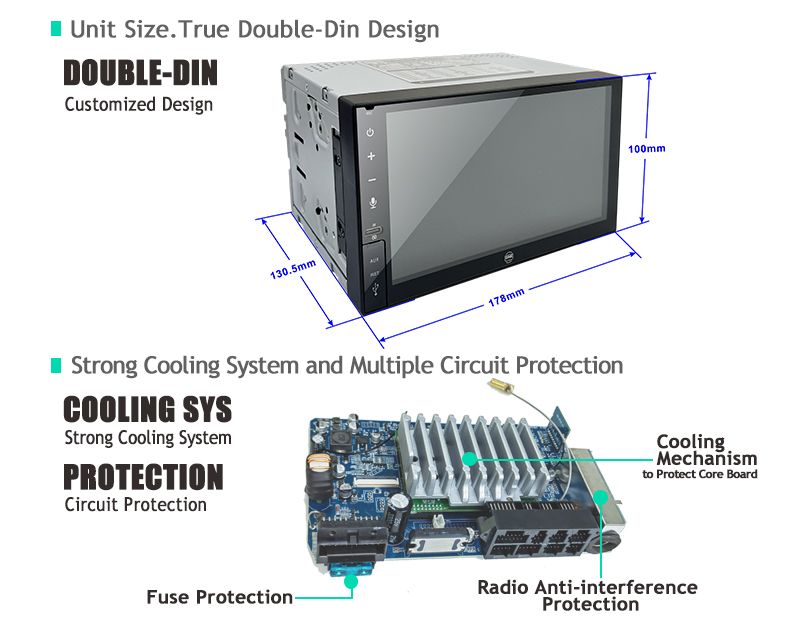

True Double Din, 178*100mm

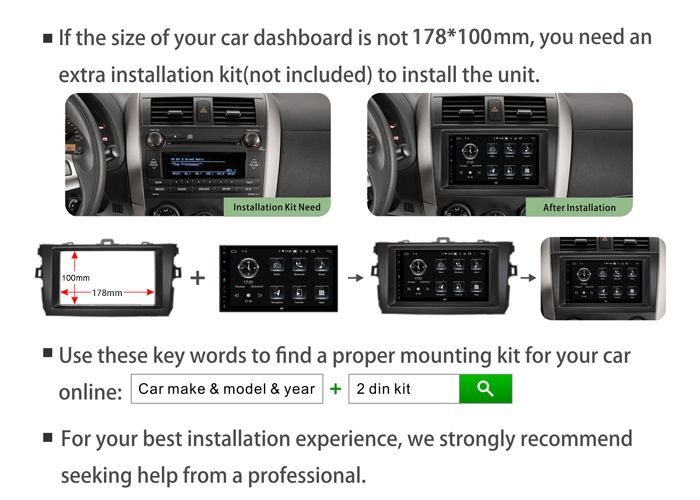

Installation Guide
Steering Wheel Control
Support AHD Reversing Camera
| Operation System | Android 11 |
| Model Number | DP-X8011PT (Premium Edition with Touch) |
| CPU | Rockchip PX5 8-Core |
| RAM+ROM | 2+32GB / 4+64GB |
| Screen Size | 7 inch (178*100mm) |
| Display Resolution | 1024*600 |
| Touch Screen | Full Capacitive Touch Screen with GT-911 Chip |
| CarPlay / Android Auto (CP & AA) | Support Wired&Wireless CarPlay/Android Auto |
| QC Charge | Support 1.5A Fast Charging both Type-C and USB Port; |
| DSP | ROHM-BU-32107 |
| Amplifier | TDA7851(4*50W) |
| Radio | NXP-6686 FM(87.5Mhz-108.0Mhz) AM(522Khz-1622Khz) RDS |
| RCA Output | 4-CH RCA Preout(4V) |
| Bluetooth | V5.0 |
| Video Output | Built-in Video Out |
| Camera Input | AHD and CVBS |
| Standby Current | <3mA |
| Chassis Depth | 135mm (With multiple circuits protection on PCBA board, and better heat dissipation) |
| Remote Control | √ |

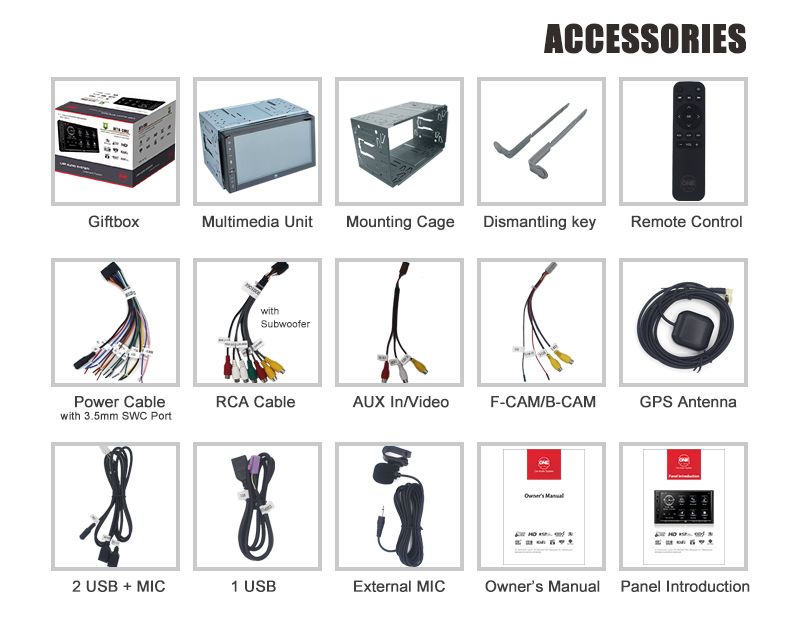

| Anti-theft Mounting Cage | √ |
| USB | 3*USB cable |
