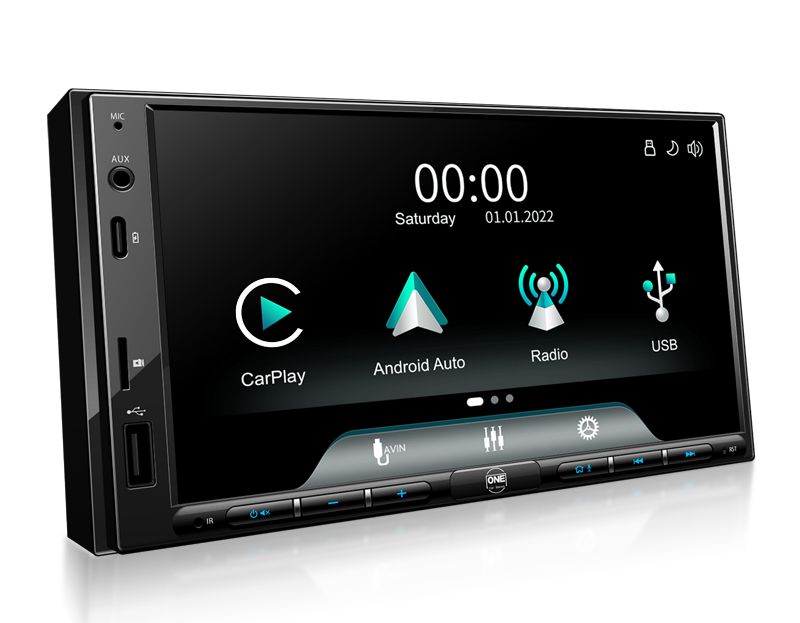

7" True Double Din Universal Digital Multimedia Receiver with Bluetooth 5.0, Apple CarPlay, Android Auto, Type-C Fast Charging
Apple CarPlay and Android Auto compatible (wired & wireless)
Bluetooth 5.0
Panel Size: 170mm*96mm (True 2 DIN Fit)

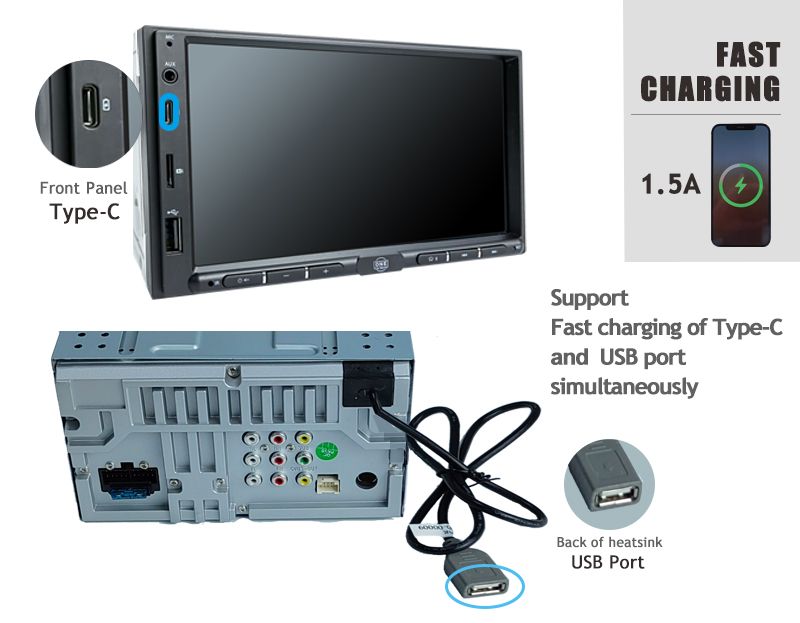

Fast Charging: Type-C and USB
Preamp Voltage: 4V
Built-in Video Out
Overview
Specifications
Product Video

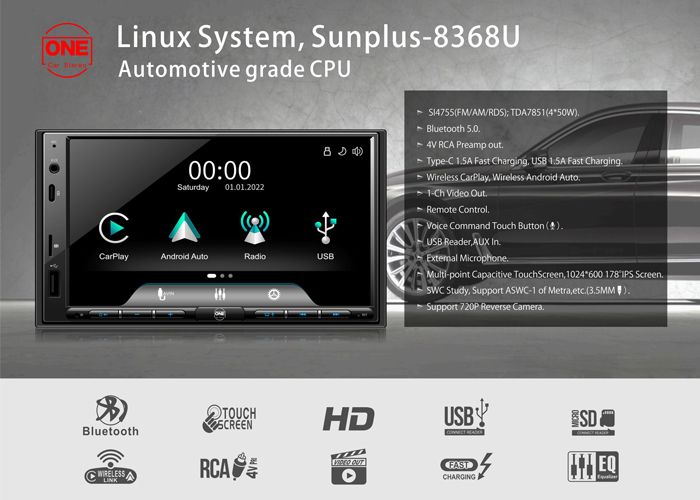

Linux System, Sunplus-8368U

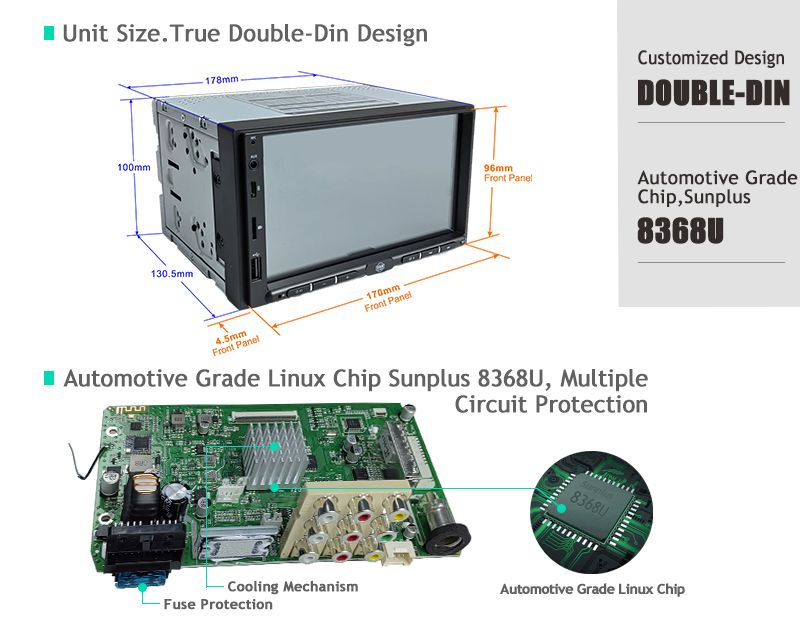

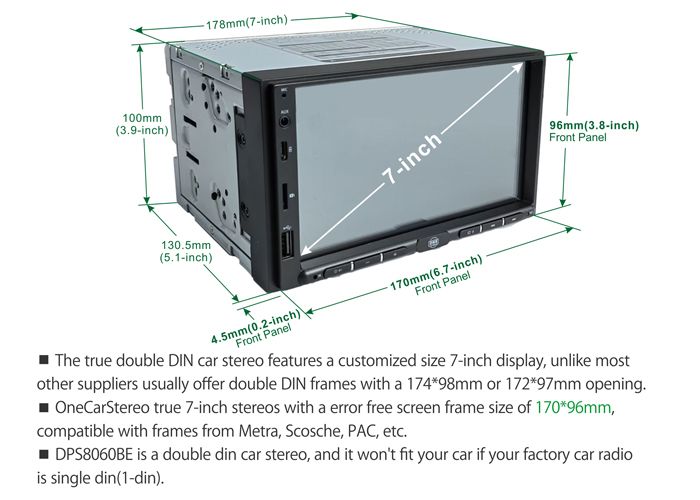

True Double Din, 170*96mm
Installation Guide

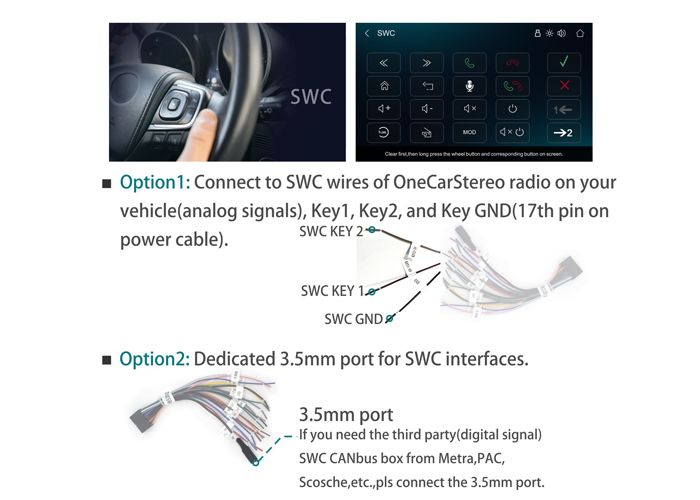

Steering Wheel Control

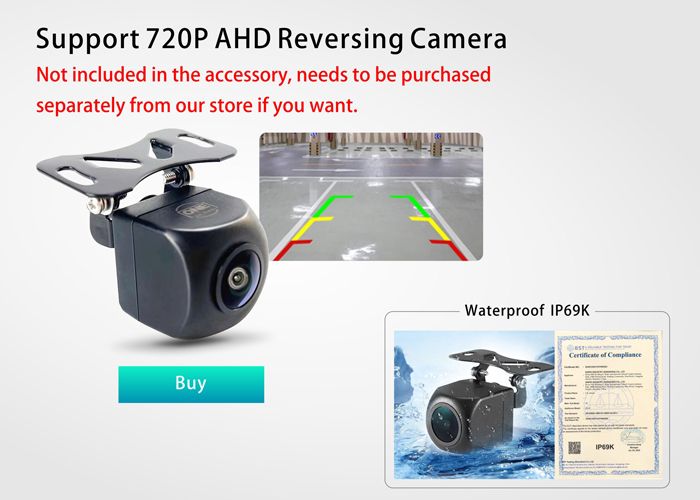

Support AHD Reversing Camera
| Operation System | Linux |
| Model Number | DP-S8060BE (Button Edition) |
| CPU | SunPlus-8368U |
| Screen Size | 7 inch (170*96mm) |
| Display Resolution | 1024*600 |
| Touch Screen | Full Capacitive Touch Screen with GT-911 Chip |
| CarPlay / Android Auto (CP & AA) | Support Wired & Wireless CarPlay / Android Auto |
| QC Charge | Support 1.5A Fast Charging both Type-C and USB Port; |
| DSP | EQ |
| Amplifier | TDA7851(4*50W) |
| Radio | SI4755 FM (87.5Mhz-108.0Mhz) AM (522Khz-1622Khz) RDS |
| RCA Output | 4-CH RCA Preout (4V) |
| Bluetooth | V5.0 |
| Video Output | Built-in Video Out |
| Camera Input | AHD and CVBS |
| Standby Current | <3mA |
| Chassis Depth | 135mm (With multiple circuits protection on PCBA board, and better heat dissipation) |
| Remote Control | √ |

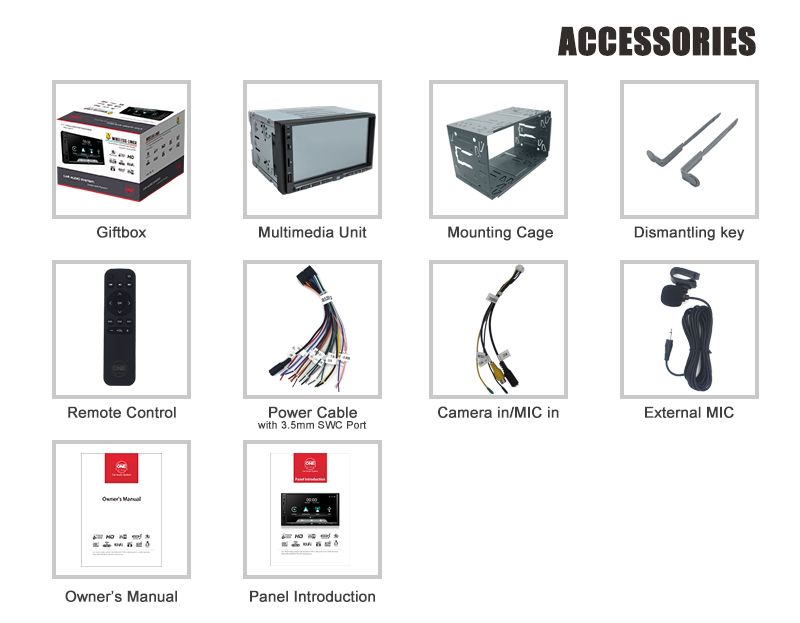

| Anti-theft Mounting Cage | √ |
| USB | 2*USB cable |
