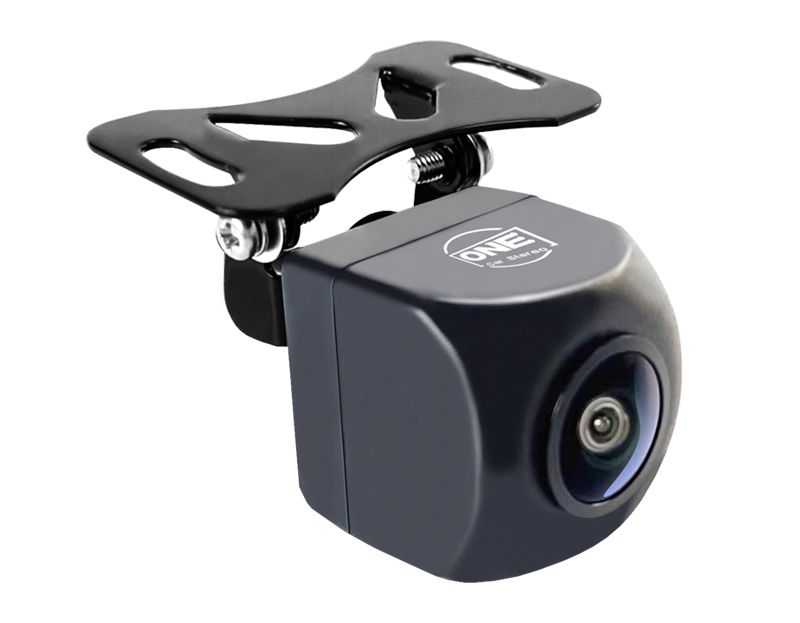

Backup Camera Compliant with IP69K Waterproof Level, Wide-angle, Night Vision, Support AHD 1080P & 720P with Antioxidant Mounting Bracket
Signal Transmission: AHD
Resolution: 1080P & 720P
Night Vision: Yes
Viewing Angle: 145 Degrees
Effective Pixel: 200W
Working Voltage: DC12V (9V ~ 16V)
Ingress protection level: IP69K
Overview
Specifications
Product Video

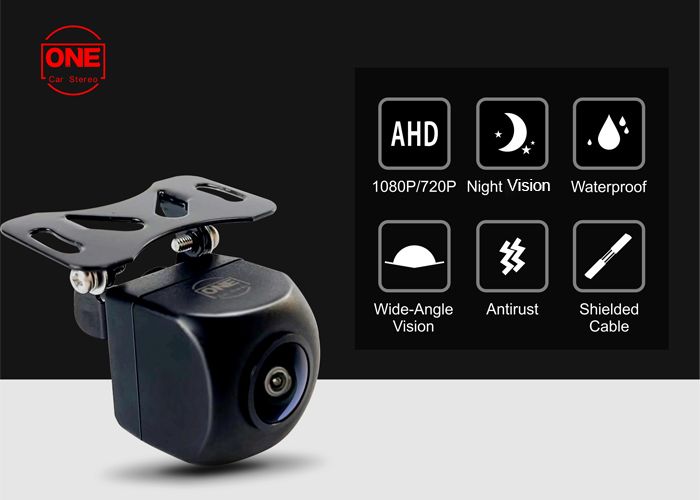

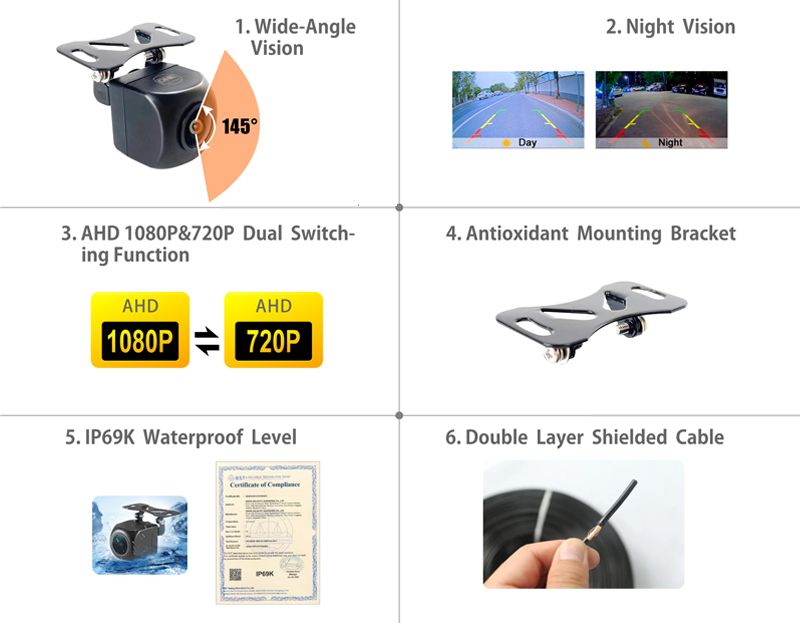

Multiple Features

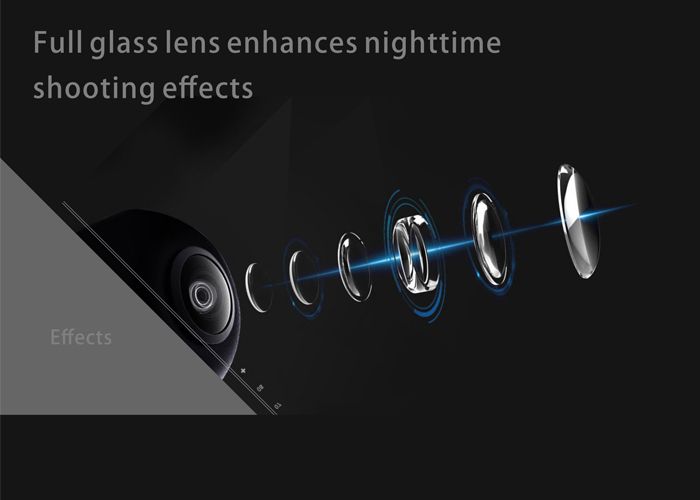

Full Glass Lens

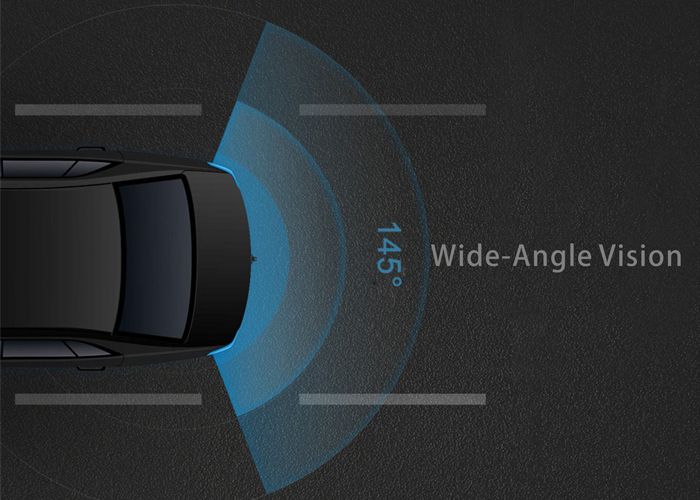

Wide-Angle Vision

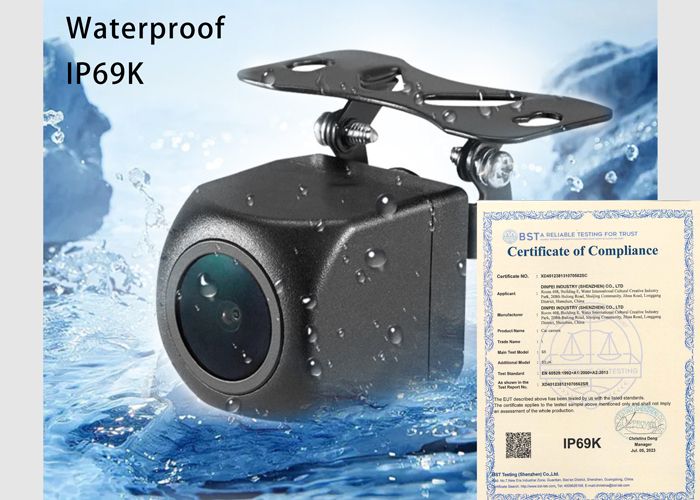

Waterproof IP69K

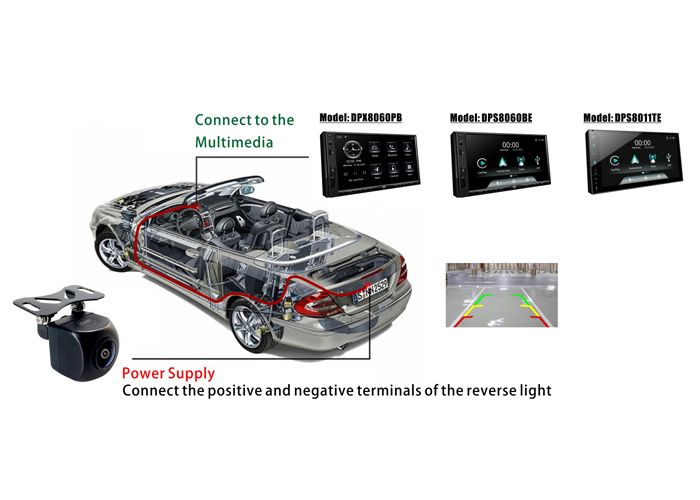

Connect to the Multimedia
| Signal Transmission | AHD |
| Resolution | 1080P & 720P |
| Ingress protection level | IP69K |
| Effective pixel | 200W |
| H/V angle | H:120, V:70 |
| Minimum illumination | 0.1Lux |
| S/N ratio | 45db |
| Scanning system | Progressive scanning |
| Current consumption | 50mA |
| Operating temperature | -30℃~70℃ |
| Working voltage | DC12V (9V~16V) |
