8-Core 9" Android 13 with Bluetooth 5.0, Apple CarPlay, Android Auto, Optical Fiber Output, HDMI Output, DTS Audio Processing, ADAS Support, 4G / WiFi, Navigation Support
Apple CarPlay and Android Auto compatible (wired & wireless)
Mirror Link compatible (wired & wireless)
Core: 8-Core, 2.7Ghz, 6nm Chip Processing
RAM/ROM: 6+128GB / 8+128G / 8+256GB / 12+256GB
Internet: 4G+WIFI
Resolution: 1280*720 / 2000*1200
Display Screen: QLED
DSP: AKM 7738
DTS Audio Processing: Support
Optical Fiber Output: Support
HDMI Output: Support
USB Input: 3
Overview
Specifications
Product Video
Octa-core, 2.4G+5G Dual Band
QLED Display, 2000*1200
Wireless CP & AA
4G SIM & Wifi Support
Multiple Features
Radio Chip Options
A2DP Bluetooth
Mirror Link
Support AHD & CVBS Camera
Steering Wheel Control
| Model Number | DPM9809U | DPM9809UP | DPM9809XE | DPM9809XP |
| RAM+ROM | 6G+128G | 8+128G | 8+256G | 12+256G |
| CPU | Octa-Core A76 2.7 Ghz, 6nm Chip Processing | |||
| Operation System | Android 13 | |||
| Screen Size | 9" | |||
| Resolution | 1280*720 / 1920*720 / 2000*1200 | |||
| Display | QLED Screen | |||
| 4G SIM Card | √ | |||
| WiFi | 2.4G + 5G Dual Band | |||
| DSP | AK7738 Automotive Grade DSP with 36 band EQ, DTS algorithm | |||
| Touch Screen | 2.5D Capacitive | |||
| CarPlay / Android Auto (CP & AA) | Support Wireless & Wired CarPlay / Android Auto | |||
| Mirror Link | √ | |||
| Amplifier | TDA7851 | |||
| Radio | TDA7708 FM (87.5Mhz-108.0Mhz) AM (522Khz-1622Khz) RDS | |||
| BT Module | V5.0 | |||
| PIP | √ | |||
| Split Screen | √ | |||
| Cooling Fan | Yes | |||
| ADAS | Support | |||
| Video Output | Built-in HDMI Output | |||
| Optical Fiber Output | Support | |||
| Audio Output | 4-Ch | |||
| Camera Input | AHD and CVBS | |||

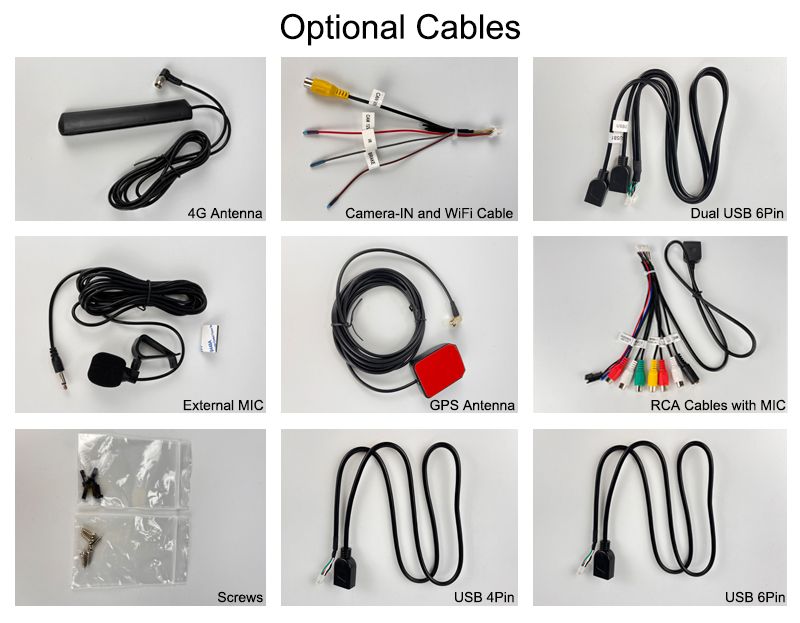

| USB | 3*USB cable | |||
