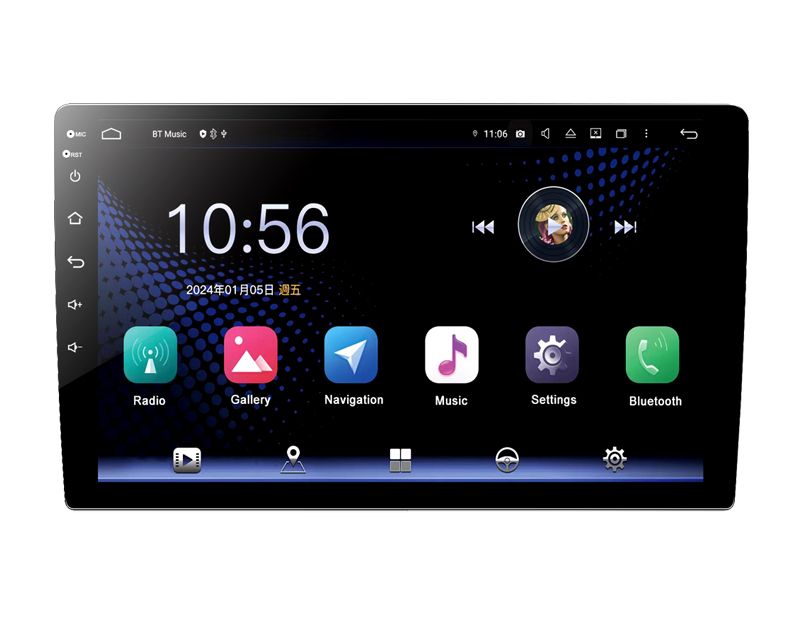

8-Core 9" Android 12 Universal Car Infotainment Radio with Bluetooth 5.0, Wireless Apple CarPlay / Android Auto / MirrorLink, Optical Fiber Output, 4G / WiFi support
Apple CarPlay and Android Auto compatible (wired & wireless)
Mirror Link compatible (wired & wireless)
Core: 8-Core, 2*A75+6*A55, Up to 2Ghz
RAM/ROM: 4+32GB / 4+64GB / 6+128GB / 8+128GB / 8+256GB
Internet: 4G+WIFI
Resolution: 1280*720
Display Screen: QLED
DSP: 36-band EQ
Optical Fiber Output: Support
USB Input: 3
Overview
Specifications
Product Video
Octa-core, 2.4G+5G Dual Band
QLED Display, 1280*720
Wireless CP & AA
4G SIM & Wifi Support
Multiple Features
Radio Chip Options
A2DP Bluetooth
Mirror Link
Support AHD & CVBS Camera
Steering Wheel Control
| Model Number | DPM7809P | DPM7809E | DPM7809U | DPM7809UP | DPM7809XE |
| RAM+ROM | 4G+32G | 4+64G | 6+128G | 8+128G | 8+256G |
| CPU | Octa-Core, 2*A75+6*A55, Up to 2Ghz | ||||
| Operation System | Android 12 | ||||
| Screen Size | 9" | ||||
| Resolution | 1280*720 | ||||
| Display | IPS / QLED Screen | ||||
| 4G SIM Card | √ | ||||
| WiFi | 2.4G + 5G Dual Band | ||||
| DSP | √ | ||||
| Touch Screen | 2.5D Capacitive | ||||
| CarPlay / Android Auto (CP & AA) | Support Wireless & Wired CarPlay/ Android Auto | ||||
| Mirror Link | √ | ||||
| Amplifier | TDA7388 | ||||
| Radio | TDA7708 / TDA7851 FM (87.5Mhz-108.0Mhz) AM (522Khz-1622Khz) RDS | ||||
| BT Module | V5.0 | ||||
| PIP | √ | ||||
| Split Screen | √ | ||||

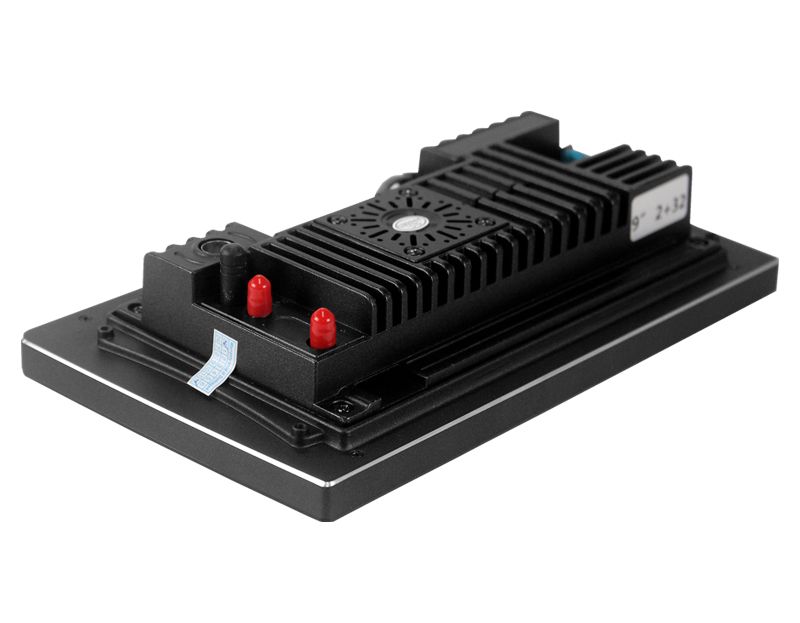

| Cooling Fan | Yes | ||||
| Video Output | USB Video out Dongle Optional | ||||
| Optical Fiber Output | Support | ||||
| Audio Output | 4-Ch | ||||
| Camera Input | AHD and CVBS | ||||

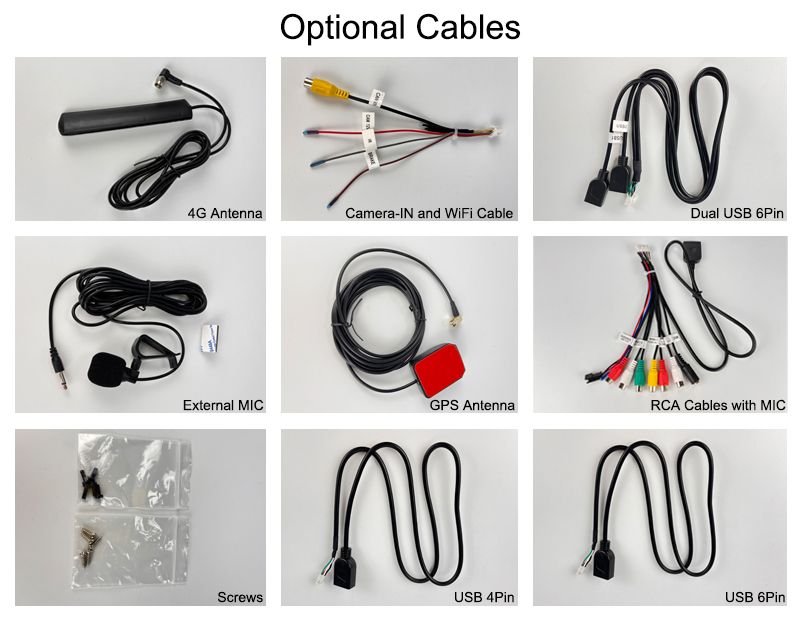

| USB | 3*USB cable | ||||
