DPM6309

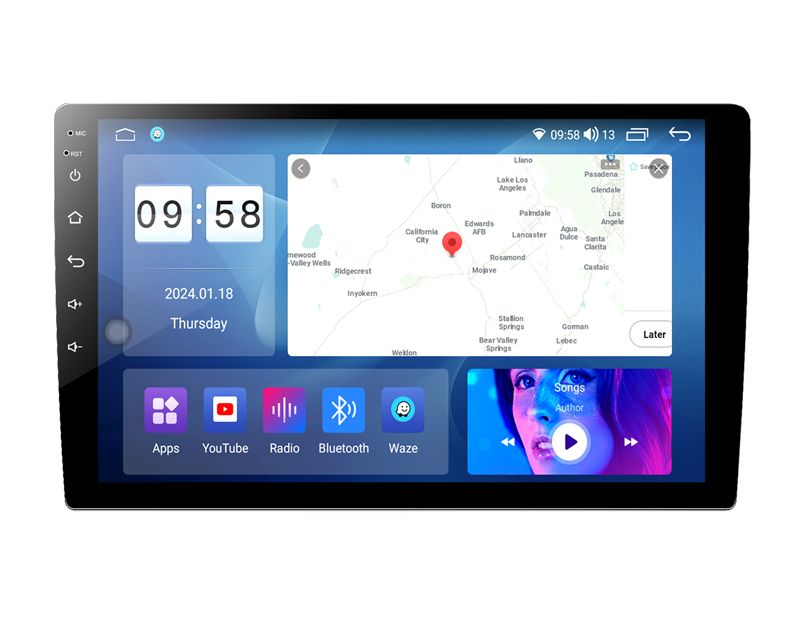

9" Android 12 Car Multimedia System with Bluetooth 5.0, Wireless Apple CarPlay & Android Auto, GPS Navigation, FM / AM / RDS Support


Apple CarPlay and Android Auto compatible (wired & wireless)

Mirror Link compatible (wired & wireless)

Core: 8-Core, Cortex TM A55, up to 1.6Ghz

RAM / ROM: 2+32GB / 4+64GB

Internet: 4G+WIFI

Resolution: 1280*720

DSP: 36-band EQ

USB Input: 3

Share:
DPM6309
DPM6309
DPM6309
DPM6309
DPM6309
DPM6309
  • DPM6309
  • DPM6309
  • DPM6309
  • DPM6309
  • DPM6309
  • DPM6309

Overview

Specifications

Product Video

Octa-core, 2.4G+5G Dual Band

QLED Display, 1280*720

Wireless CP & AA

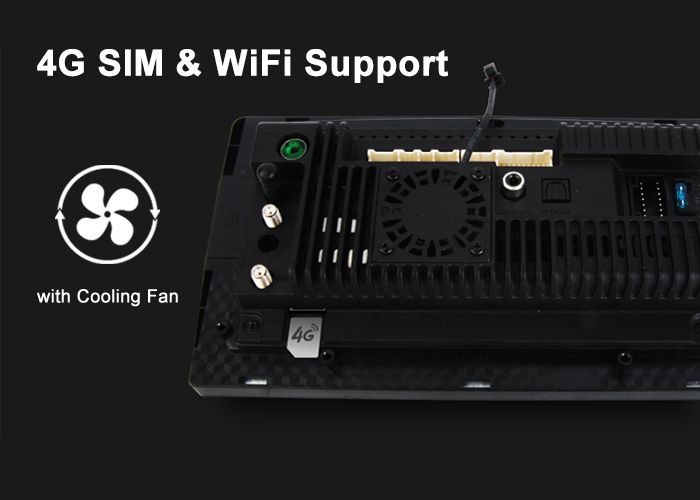

4G SIM & Wifi Support

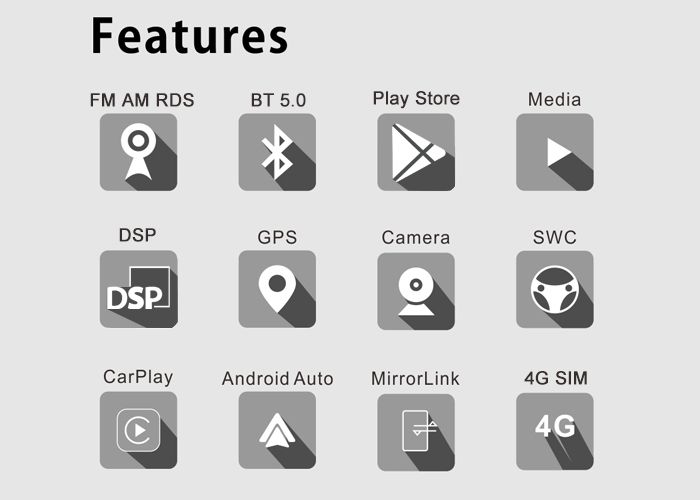

Multiple Features

Radio Chip Options

A2DP Bluetooth

Mirror Link

Support AHD & CVBS Camera

Steering Wheel Control


Model   NumberDPM6309SDPM6309P
RAM+ROM2G+32G4+64G
CPUOcta-Core, Cortex TM A55, up to 1.6Ghz
Operation SystemAndroid 12
Screen Size9"
Resolution1280*720
Display  IPS / QLED Screen
4G SIM Card
WiFi 2.4G+5G Dual Band
DSP
Touch Screen2.5D Capacitive
CarPlay / Android Auto (CP & AA)

Support Wireless & Wired

CarPlay / Android Auto

Mirror Link
AmplifierTDA7388
RadioSI4745/TDA7708/TDA7851
FM (87.5Mhz-108.0Mhz)
AM (522Khz-1622Khz)
RDS
BT ModuleV5.0
PIP
Split Screen

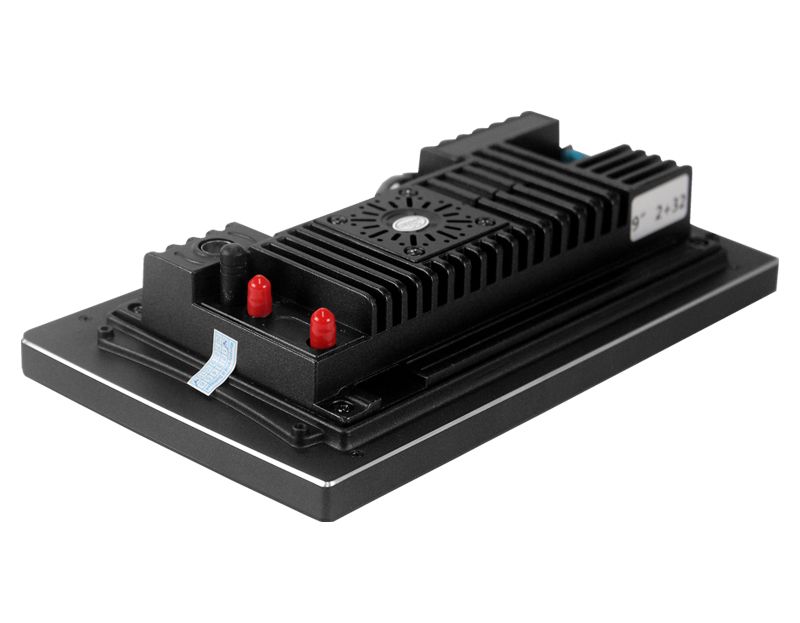

Cooling FanYes
Video OutputUSB Video out Dongle Optional
Audio Output4-Ch
Camera InputAHD and CVBS
USB3*USB cable
