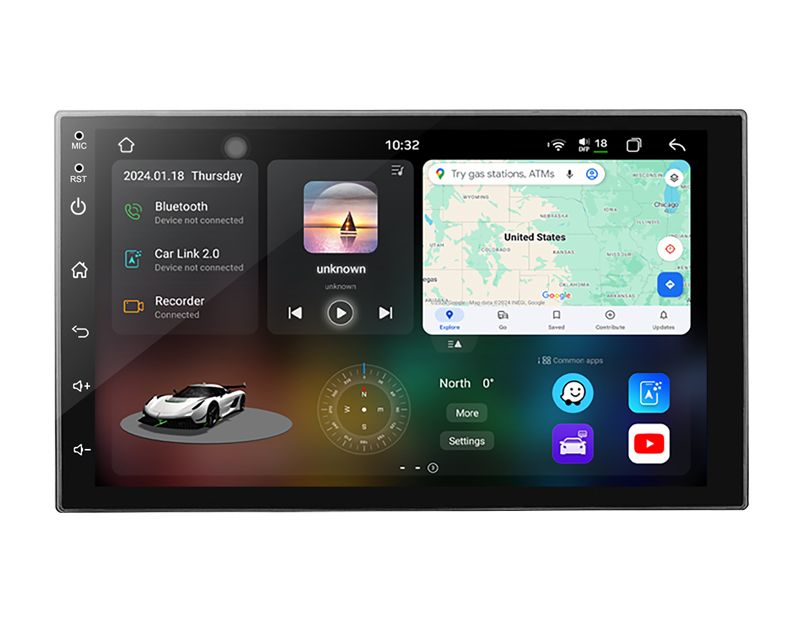

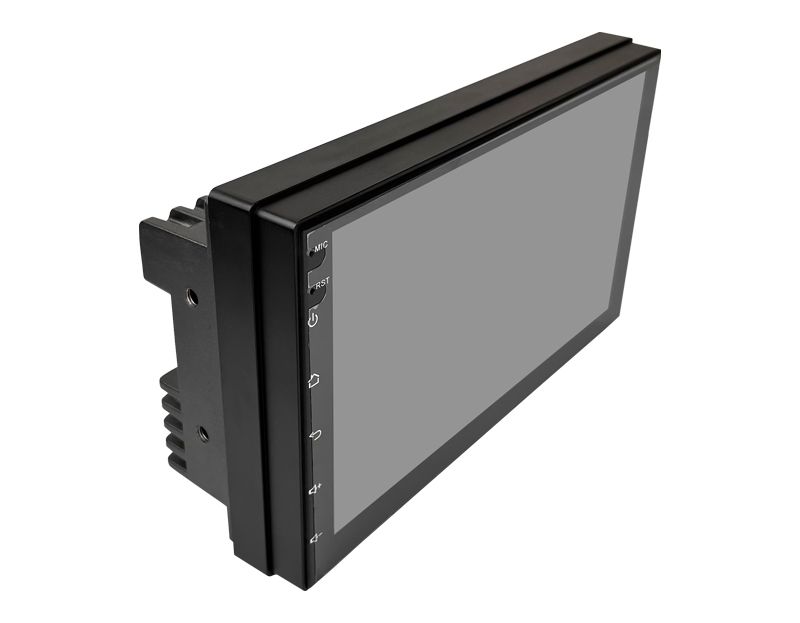

8-Core 7" Double Din Android 13 Car Radio with Bluetooth 5.0, Apple CarPlay, Android Auto, Optical Fiber Output, HDMI Output, DTS Audio Processing, ADAS Support
Apple CarPlay and Android Auto compatible (wired & wireless)
Mirror Link compatible (wired & wireless)
Panel Size: 178*100mm
Core: 8-Core, 2.7Ghz, 6nm Chip Processing
RAM/ROM: 6+128GB / 8+128G / 8+256GB / 12+256GB
Internet: 4G+WIFI
Resolution: 1280*720 / 2000*1200
Display Screen: QLED
DSP: AKM 7738
Optical Fiber Output: Support
HDMI Output: Support
DTS Audio Processing: Support
USB Input: 3
Overview
Specifications
Product Video
Octa-core, 2.4G+5G Dual Band
QLED Display, 2000*1200
Wireless CP & AA
4G SIM & Wifi Support
Multiple Features
Radio Chip Options
A2DP Bluetooth
Mirror Link
Support AHD & CVBS Camera
Steering Wheel Control
| Model Number | DPM9807U | DPM9807UP | DPM9807XE | DPM9807XP |
| RAM+ROM | 6G+128G | 8+128G | 8+256G | 12+256G |
| CPU | Octa-Core A76 2.7 Ghz, 6nm Chip Processing | |||
| Operation System | Android 13 | |||
| Screen Size | 7" | |||
| Resolution | 1280*720 / 1920*720 / 2000*1200 | |||
| Display | QLED Screen | |||
| 4G SIM Card | √ | |||
| WiFi | 2.4G + 5G Dual Band | |||
| DSP | AK7738 Automotive Grade DSP with 36 band EQ, DTS algorithm | |||
| Touch Screen | 2.5D Capacitive | |||
| CarPlay / Android Auto (CP & AA) | Support Wireless & Wired CarPlay / Android Auto | |||
| Mirror Link | √ | |||
| Amplifier | TDA7851 | |||
| Radio | TDA7708 FM (87.5Mhz-108.0Mhz) AM (522Khz-1622Khz) RDS | |||
| BT Module | V5.0 | |||
| PIP | √ | |||
| Split Screen | √ | |||

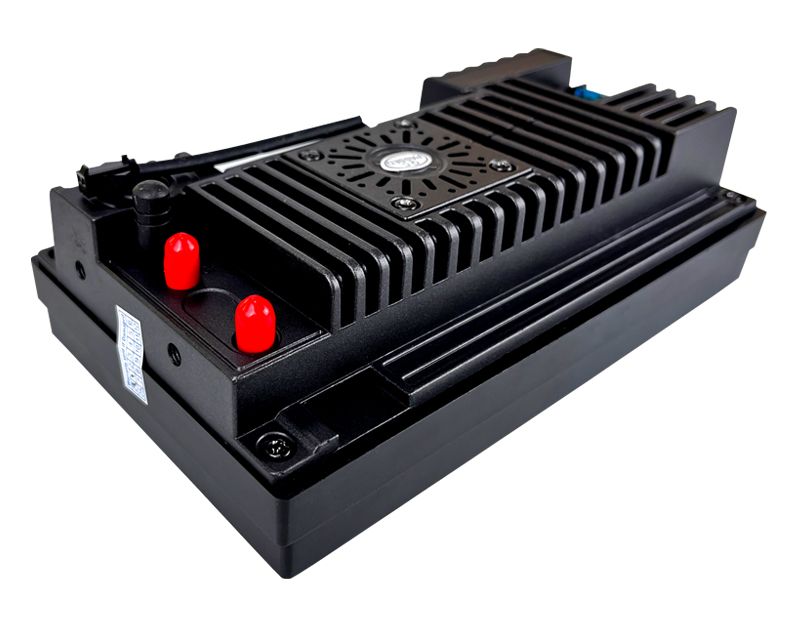

| Cooling Fan | Yes | |||
| ADAS | Support | |||
| Video Output | Built-in HDMI Output | |||
| Optical Fiber Output | Support | |||
| Audio Output | 4-Ch | |||
| Camera Input | AHD and CVBS | |||
| USB | 3*USB cable | |||
